A miniature AC servo motor, measuring 14.5,19.5,22mm, has been added to our lineup-making possible via densification the size reduction of products such as semiconductor fabrication equipment, chip mounters, and small XY tables. In order to integrate with a variety of sensors, this AC servo motor is available as either an encoder or resolver.

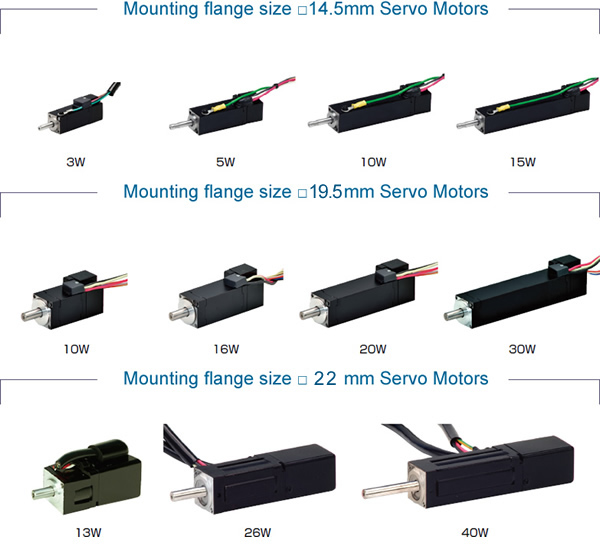

Products line-up

Mounting flange size □14.5mm Servo Motors

Features

• Super small motor size.
• Servo Motor sensors line-up are resolver type and encoder type
• Rated output 3,5,10,15W
  Rated speed 3,000min-1
  Maximum speed 6,000min-1

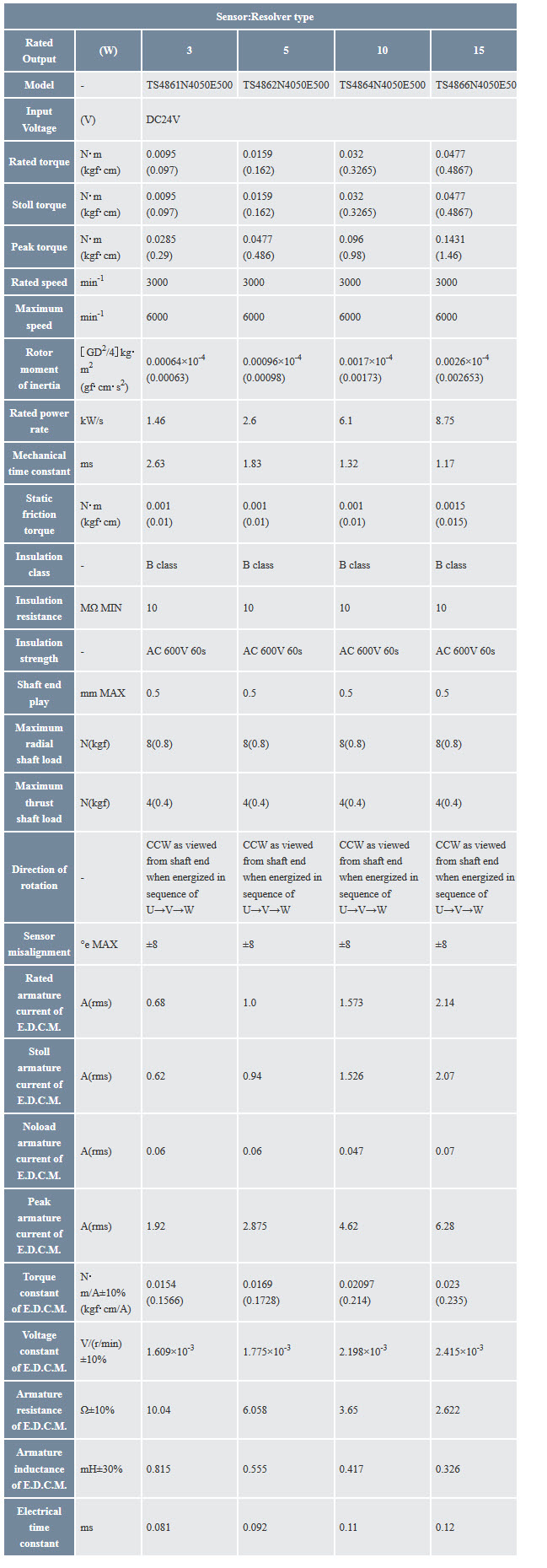

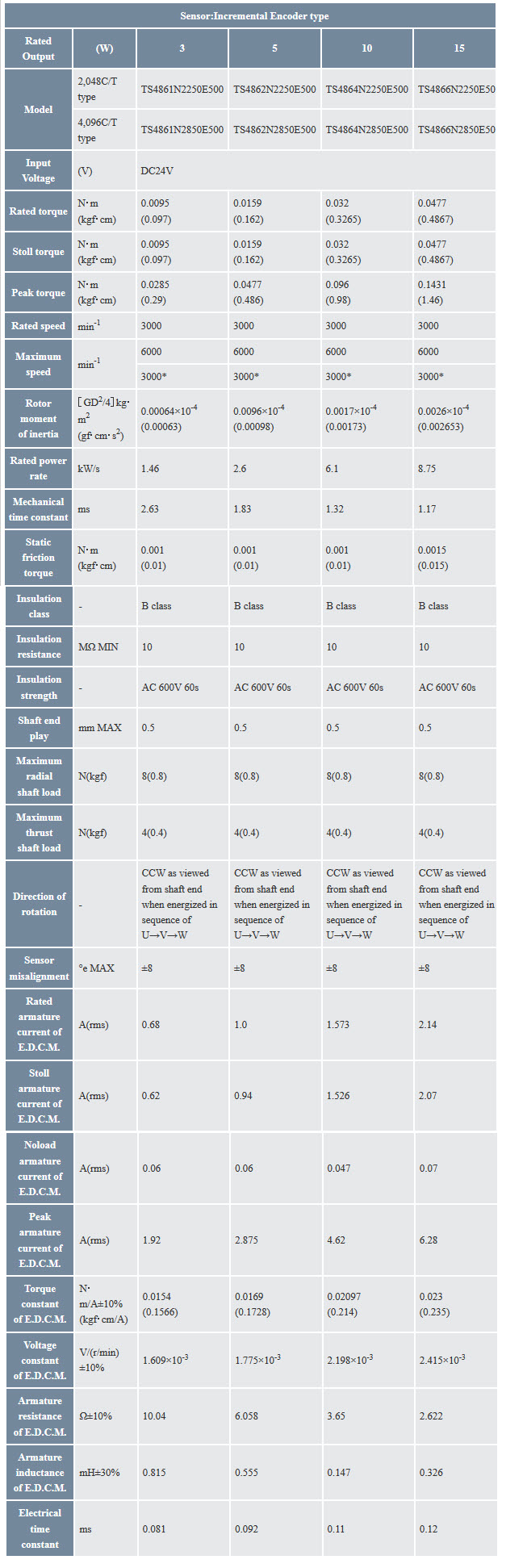

Specifications

Mounting flange size □19.5mm Servo Motors  (Under development)

Features

• Small motor size.
• The sensor is an excellent resolver type in the environment-proof of the performance.
• Rated output 10,16,20,30W
  Rated speed 3,000min-1
  Maximum speed 6,000min-1

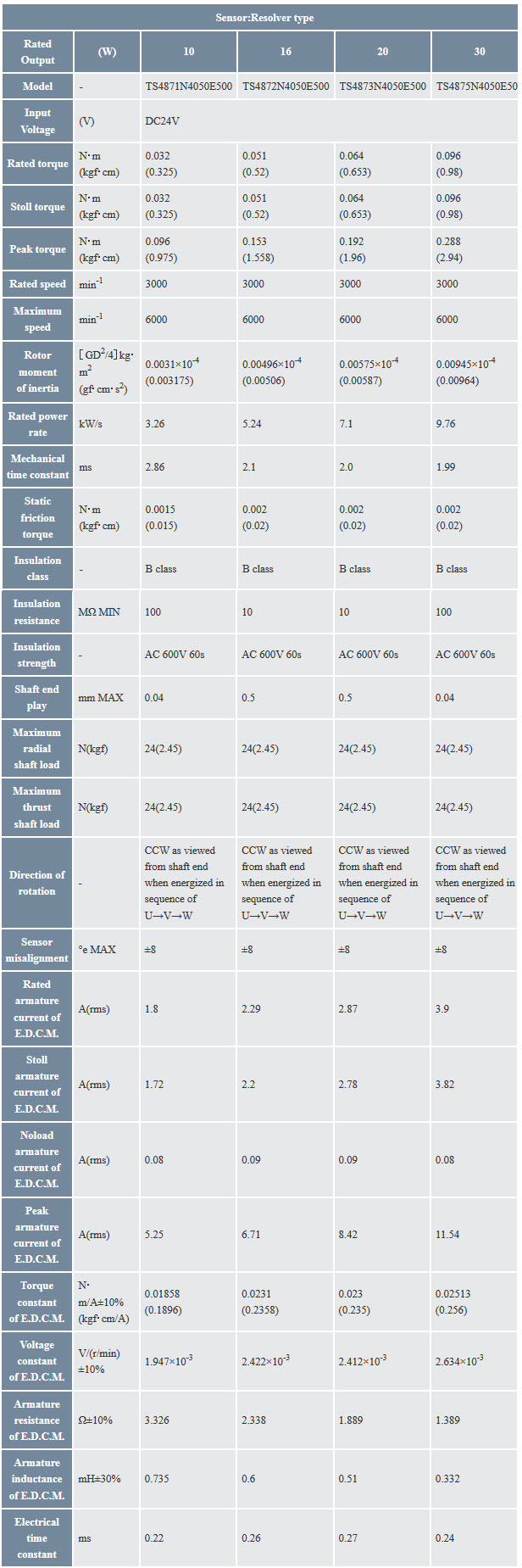

Specifications

Mounting flange size □22mm Servo Motors

Features

• Small motor size.
• Servo Motor sensor line-up are 2,000C/T and 2,048C/T incremental encoder type.
• Rated output 13,26,40W
  Rated speed 4,000min-1
  Maximum speed 5,000min-1

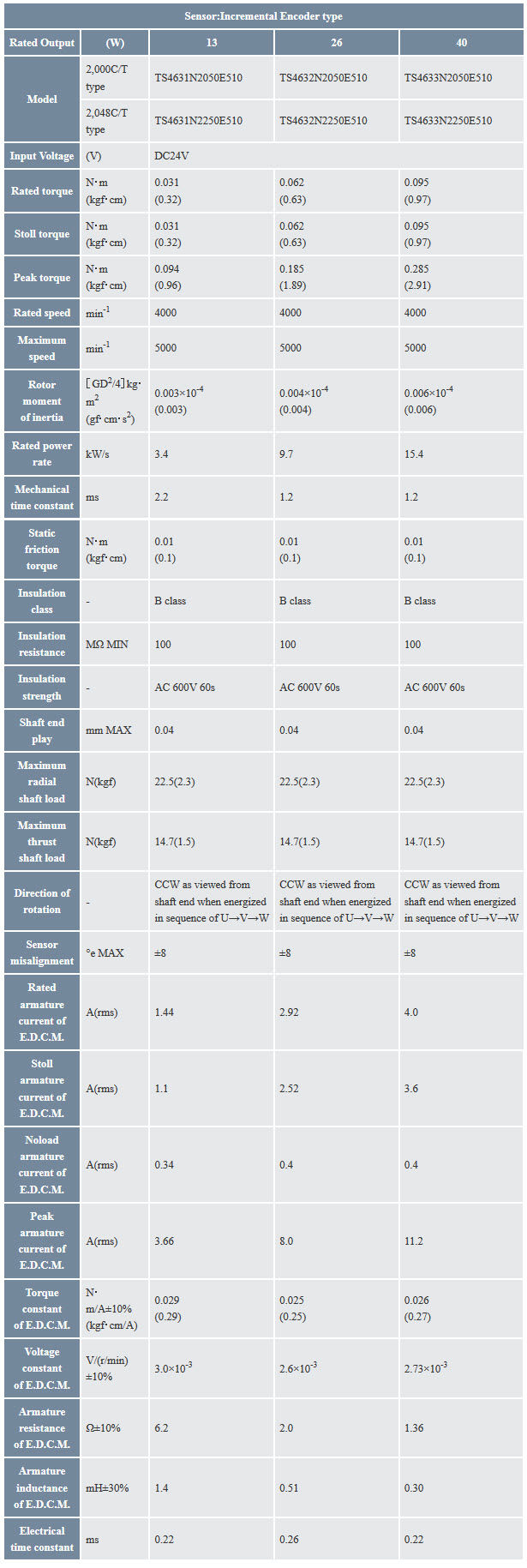

Specifications

Features

• SV-NET in daisy chain.
  Daisy chain connection minimizes wiring requirement.
• Powerful functions.
  he functions packed into the small framework facilitate not only network connection,but also easy external signal inputs such as pulse commands or analog commands through the use of an I/O connector.

Functions

• Control commands
  Position command input SV-NET or pulse command
  Speed command input SV-NET or analog command
  Current command input SV-NET or analog command
• Parameter setting functions
  Control mode,Position loop gain,Speed loop gain,Speed integration gain,Feed forward, Resonance control filter,Analog command scale setting.
  Electronic gear setting,Smoothing,Accelerration limit,etc.
• Protective functions
  Sensor error,Drive power error,Over-heat,Over-speed,Overload.
  Excessive deviation,etc.
• Input and output signals
  Servo ON input,Alarm reset input,Alarm output,In-the-position output,A/B/Z output etc.

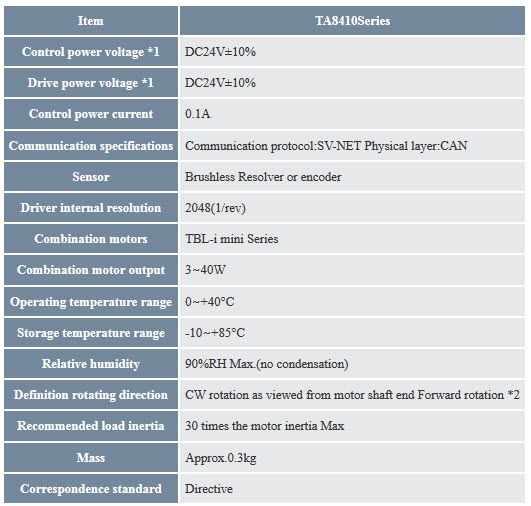

Specifications

*1
Do not use the same power supply lore the control power and the drive power(when the drive power is DC24V).
Otherwise,troubies may occur. When the use of the same power supply is inevitable, take procautions,sudh as inserting a diode,so that the voltage variation on the drive power side may not adversely affect the control power side.

*2
Definition of rotating direction can be changed by parameter.

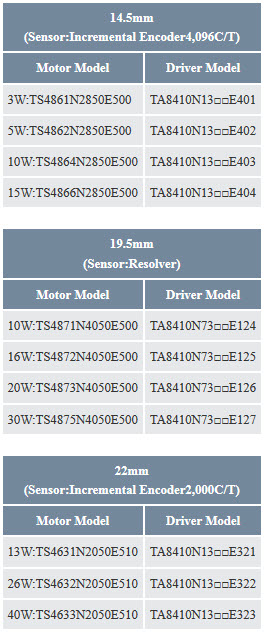

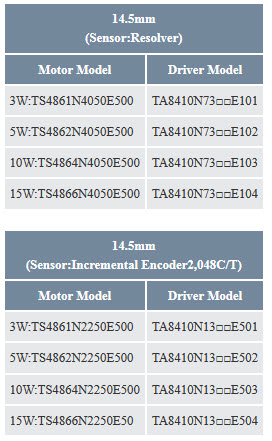

Motor/Driver Combinations

Cables(optional)
